Direct Protect+
Protect Your Whole Family
Only available to customers who lease our GigaSpire routers
Blazing Speeds and Whole-Home Coverage

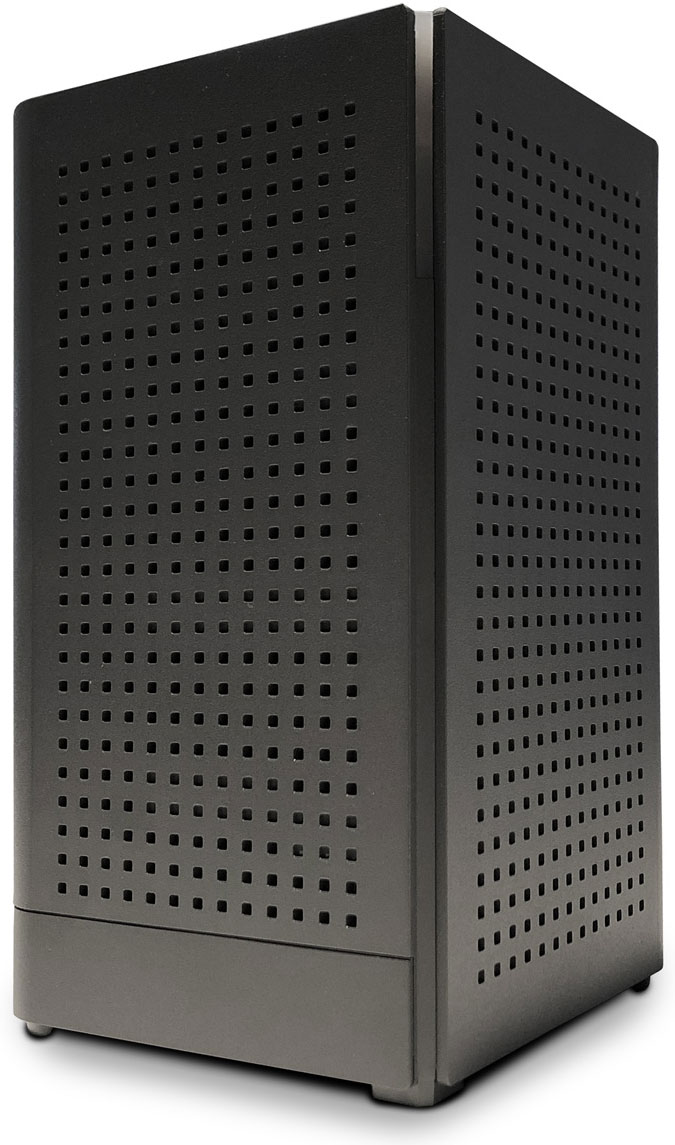

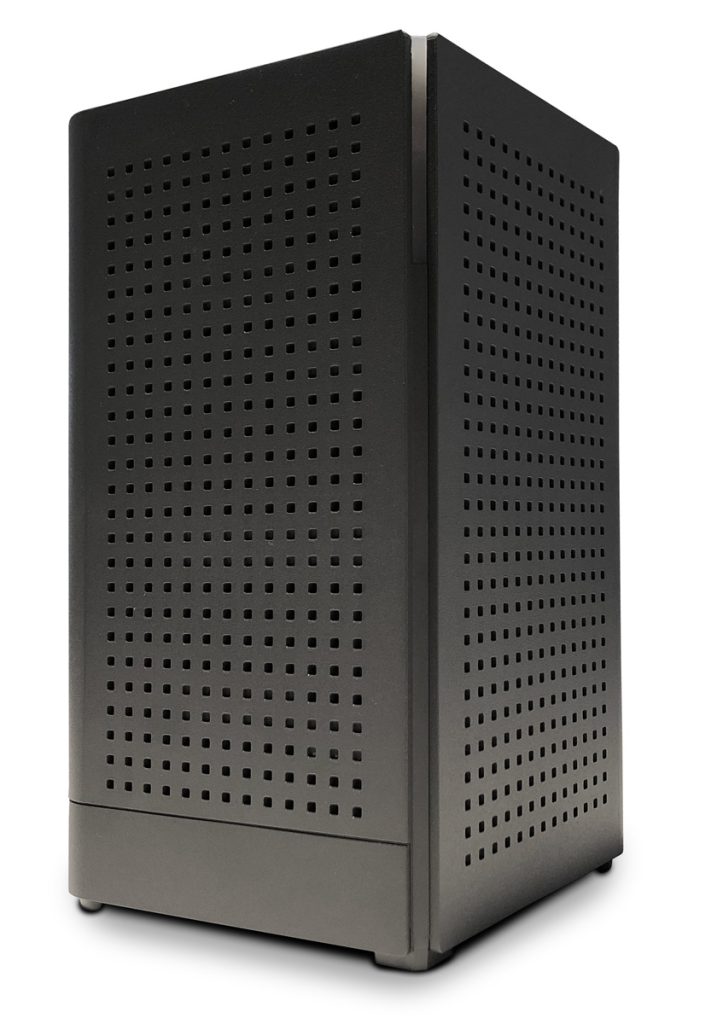

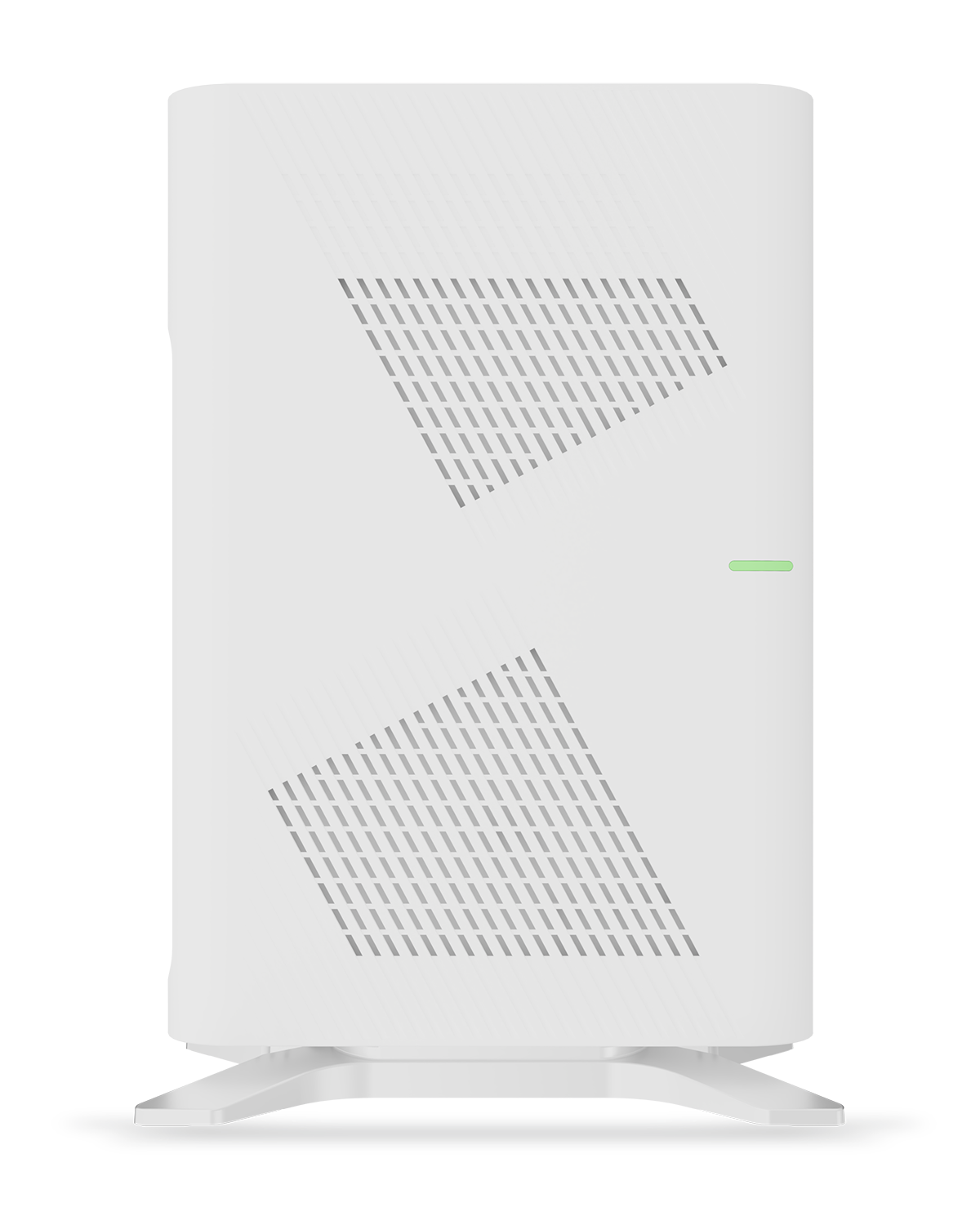

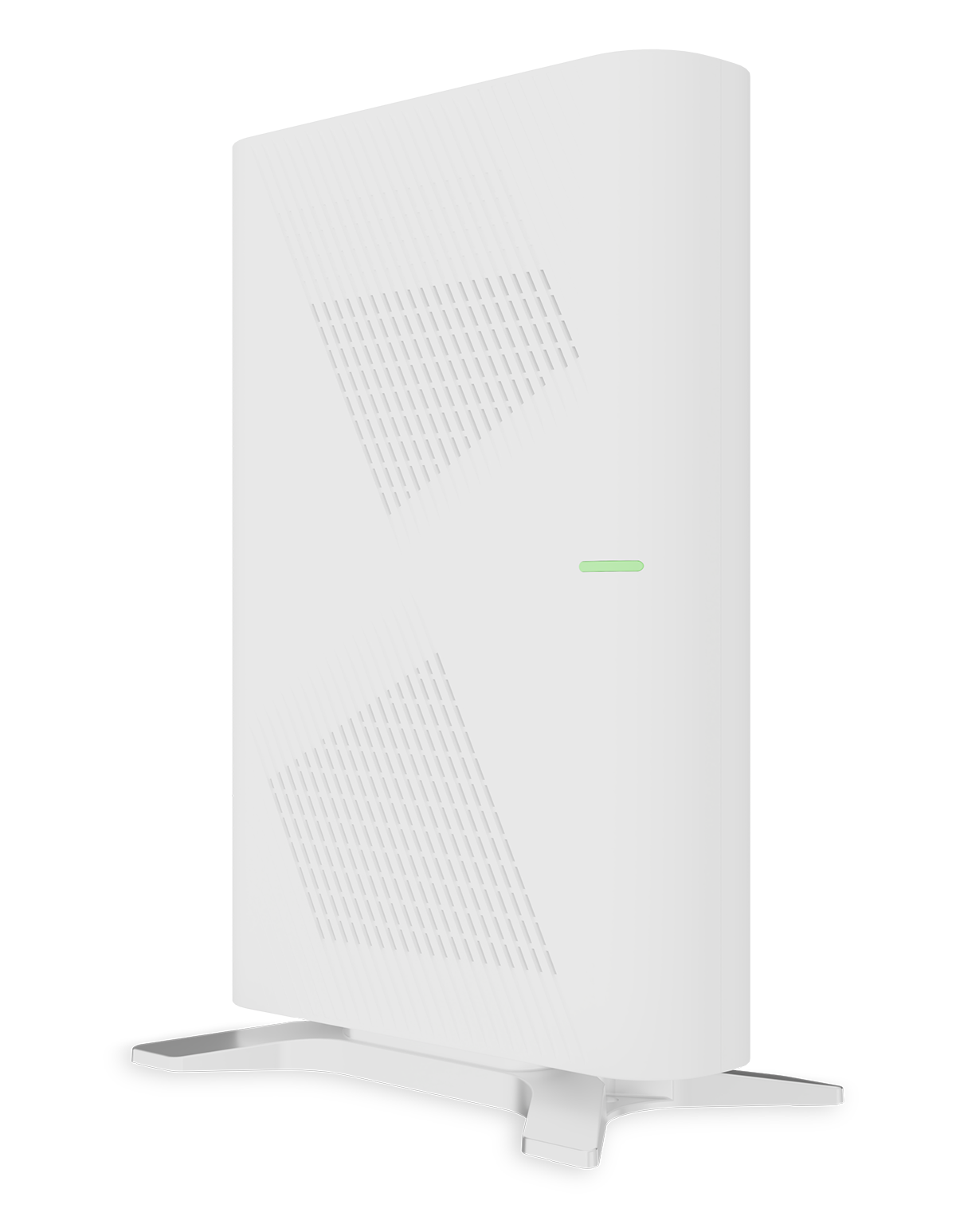

The GigaSpire 7u10t delivers four times the performance of current Wi-Fi 6 systems, setting the new standard. Equipped with Wi-Fi 7 functionality, broadband service providers now have the ideal Wi-Fi system to complement 10G fiber delivery systems to solve the high-speed requirements of gaming systems, the low latency need for applications equipped with augmented/virtual reality functionality, the expanded use of 4K/8K streaming devices and the growing number of connected intelligent devices per subscriber.
Cutting Edge
Wi-Fi 7 is the new mainstream standard supported by flagship devices, ensuring your wireless network finally matches the high-speed capabilities of 10G XGS-PON fiber
Lighting Fast
Wi-Fi 7 delivers a theoretical top speed of 46.4 Gbps, a four-fold increase over previous standards that could allow a future device to stream 50 8K movies simultaneously
Broad Coverage
The inclusion of Automated Frequency Coordination (AFC) enables standard power transmission in the 6 GHz band, significantly extending the reach of multi-gigabit bandwidth throughout a premises
High Performance
By quadrupling modulation to 4K QAM, the standard packs more data into the same frequency "lanes" to handle the most bandwidth-intensive applications without buffering
Security
This standard continues the mandatory adoption of the WPA3 protocol, providing robust encryption and improved authentication for high-security enterprise and home environments
Flexibility
Using Multi-Link Operation (MLO), Wi-Fi 7 can aggregate three different frequency bands simultaneously to dynamically route traffic and maintain the most reliable connection possible
Direct Protect+
Features
Set up your Direct Protect+ system with minimal support. Customize settings across all connected devices, applications, family members, and rooms to create your own ultimate experience. Receive timely and helpful messages and alerts to know of any issues and provide offers and services that can enhance subscriber experience.
Network Security

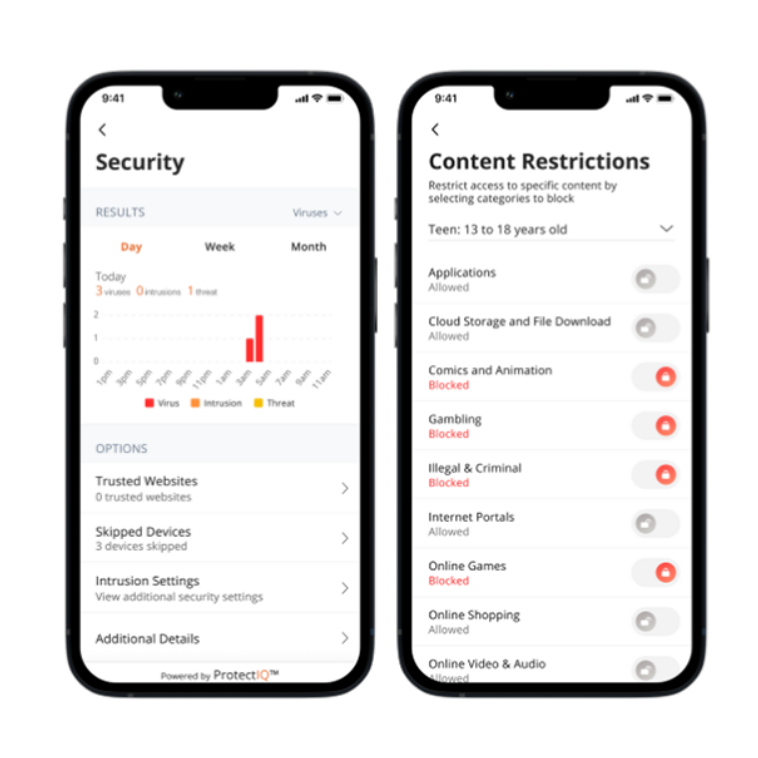

As viruses and malware become increasingly sophisticated, your network requires an equally innovative solution. Direct Protect+ helps you keep a lock on your network – and alerts you when any unwanted visitors try to enter.
Protect What Matters
Parental controls are a network-level security service included in Direct Protect+. This unique feature protects all devices connected to your WiFi network. When it’s connected, it’s protected!
Network Management

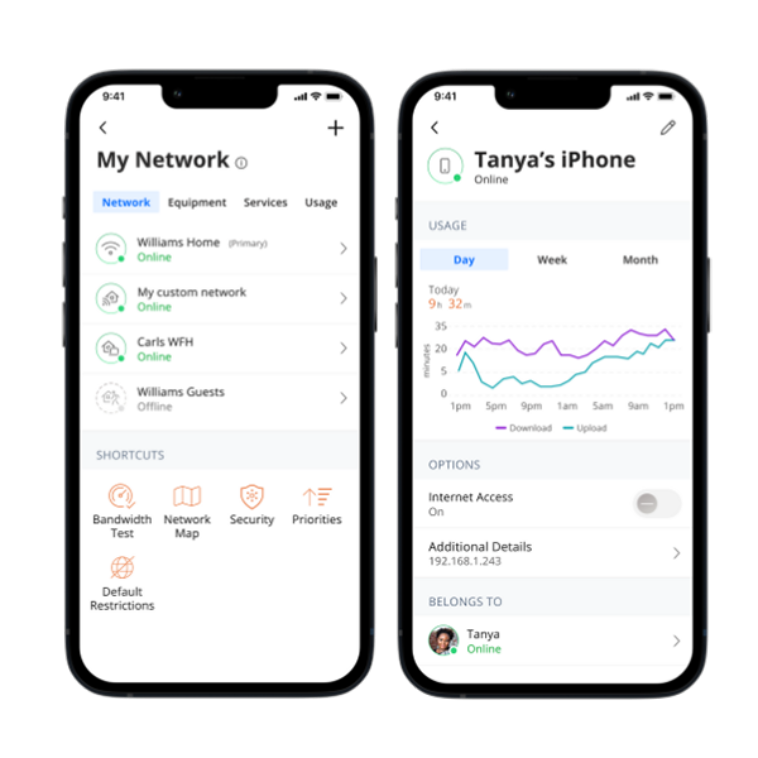

Take complete control of your home Wi-Fi system through the Direct Protect+ app and get the ultimate Wi-Fi experience through your tailored and customized home network.
Included with All Gig Packages
Fast internet should also be secure. That’s why Direct Protect+ is now included at no additional cost with our Gig and higher speed packages.
Direct Protect+ adds an extra layer of protection to your network by helping guard connected devices against online threats—without slowing you down or requiring complicated setup.
As more devices connect to your home or business network, the need for built-in security grows. This service works quietly in the background, so you can focus on what you’re doing and not on managing security tools.
Combined with our high-performance fiber network, Direct Protect+ ensures your connection is not only fast, but also better protected against today’s online risks.
ProductSpecifications
Home Gateway:
- Layer 2 bridge and Layer 3 routing for High-Speed Internet (HSI) data and IPTV video services
- DHCP server options
- DHCP (IPoE) and PPPoE network connections
- Network Access Translation (NAT), public to private IP addressing
- Configurable IP address schemes, subnets, static-IP addresses
- DNS server
- Bridge port assignment and data traffic mappings
- Port forwarding
- Firewall and security
- Application and website filtering
- Selectable forwarding and blocking policies
- DMZ hosting
- Parental controls, time of day usage
- Denial of service (DoS) protection
- Time/Zone support
- Universal Plug-and-Play (UPnP)
WiFi:
- 2.4 GHz, 5 GHz, and 6 GHz simultaneous tri-band
- 5 GHz 802.11be (Wi-Fi 7) certified, 802.11a/b/g/n/ac/ax compatible
- 6 GHz (Wi-Fi 7), 802.11be compatible
- 2x2 @ 2.4 GHz, 4x4 @ 5 GHz and 4x4 6 GHz
- 2.4 GHz 802.11ax certified, 802.11b/g/ac compatible
- WPA/WPA2/WPA3
- PuF (Physical Unclonable Functions) Datasheet
- WPS push-button
- 4x4 DL/UL MU-MIMO, implicit/ explicit high-power, dynamic beamforming
- 4096 QAM; OFDMA; BSS Coloring
- MLO (Multi-Link Operation)
- 320MHz support @ 6GHz
- DCM (Dual Carrier Modulation)
- TWT (Target Wake Time) for IoT clients
Traffic Management and Quality of service (QoS):
- 802.1Q VLANs
- 802.1p service prioritization
- Q-in-Q tagging
- Multiple VLANs
- DiffServ
- Pre-defined QoS on service type
- MAP-T

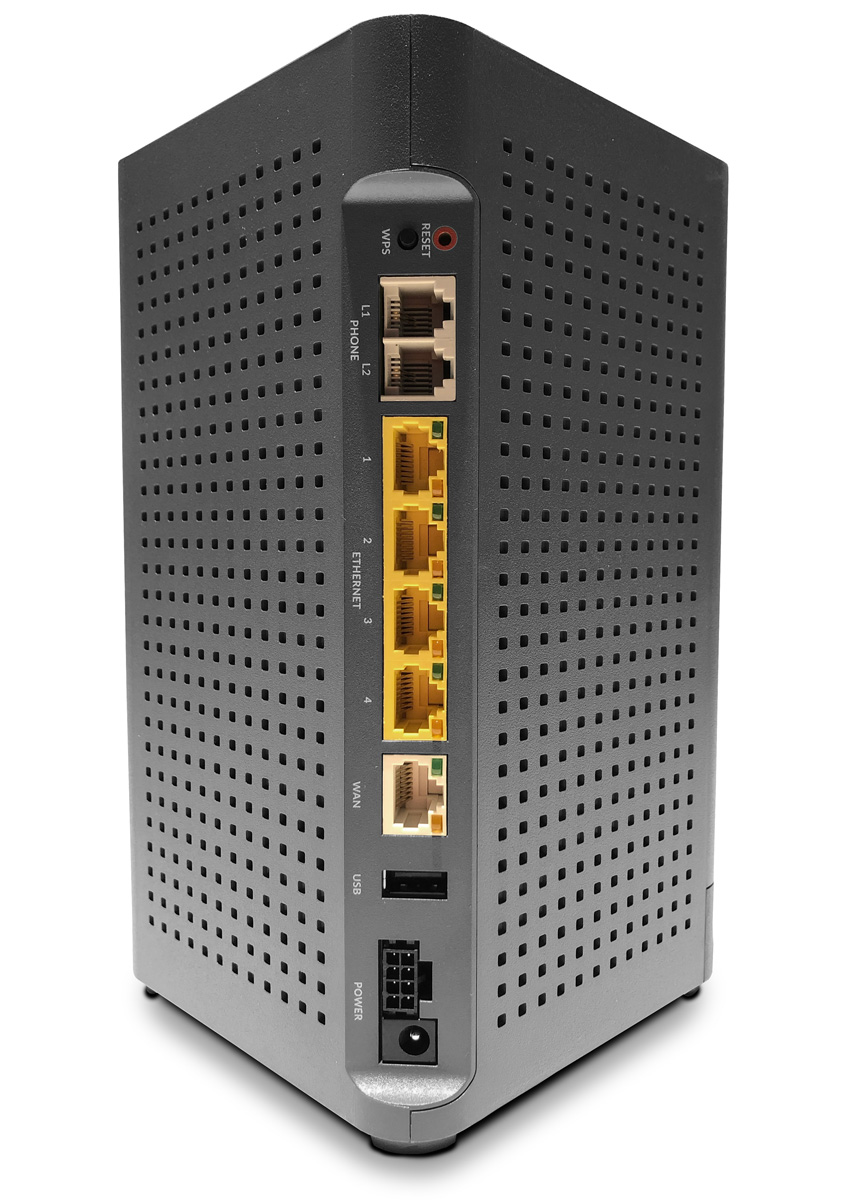

Interfaces:
- WAN: 10 Gigabit Ethernet
- LAN: One (1) 10 Gigabit Ethernet; Four (4) 100/1000/2500 BASE-T Ethernet ports, RJ 45 connectors
- Voice: Two (2) ports
- USB: USB 2.0 Type A
- WPS: WPS Push-button actuator
- Reset button for factory default
- Single pin and 8-pin UPS
WiFi Redundant Mesh:
- Self-Managed: self-configuration, Airtime fairness
- Dynamic Mesh: load balancing, band/node steering; interference management
- Self-Healing: backhaul failover; diagnostics; events
Cutting Edge
Experience a growing selection of applications powered by a flexible operating system, enhancing everything about your connected life from parental controls to the latest in network security and more.
4 Ports
Multiple routing ports.
